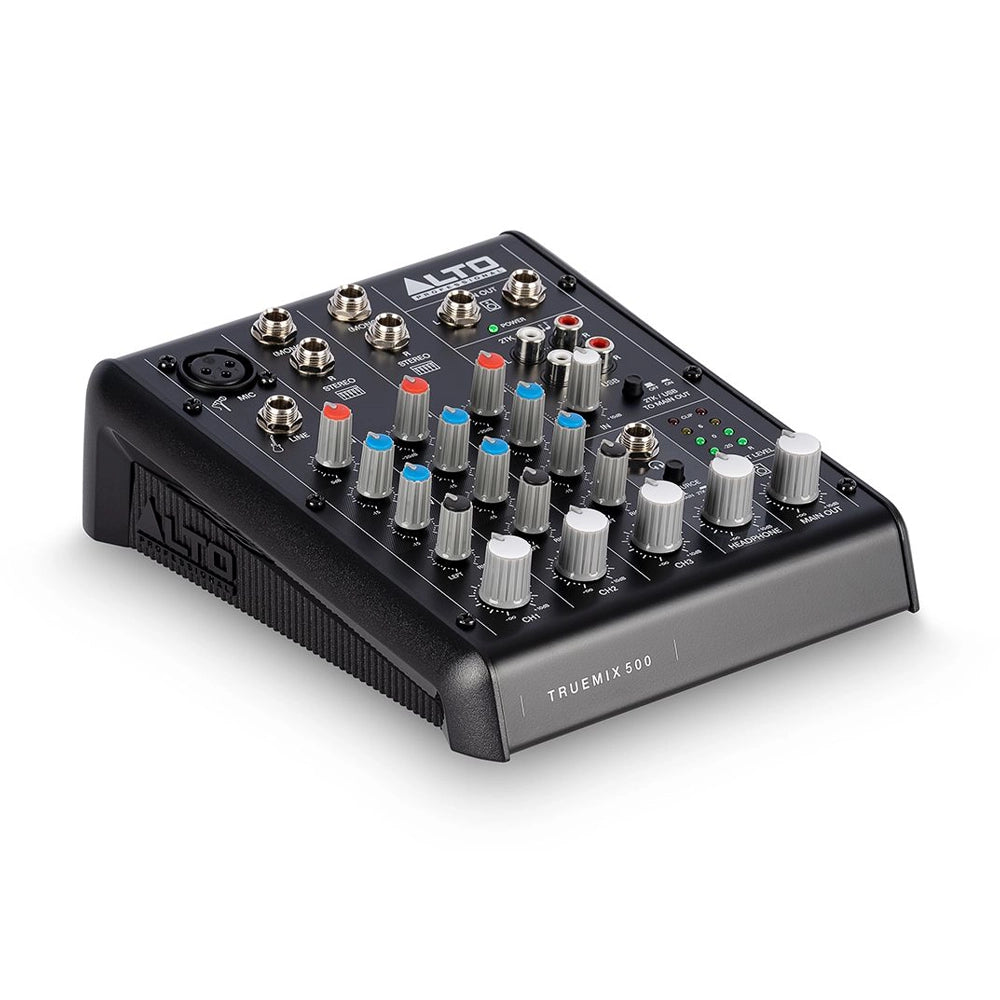

The Alto Professional TrueMix 500 5-channel analog mixer delivers simple and effective audio mixing to your workspace. Given its USB I/O interface, five input options, and a single 18V phantom power line input, you’ll enjoy versatile and simplistic mix control among a wealth of instruments, vocals, and more. Each of the five channels is loaded with a 2-band EQ, gain, and panning control. Additionally, Main, Tape, and Headphone outputs are available to facilitate your volume based on your specific gear. Found yourself at a darker venue? No worries: the Power, Peak, and Main Out meter LEDs will ensure you’ve still got a gauge on your audio.

Features:

• High-performance 5-channel tabletop mixer — perfect for home studios and mobile projects
• Intuitive USB I/O provides simplistic connections and expansive application options
• 18V phantom power mic input channel
• Dual stereo input with balanced 1/4-inch TRS jacks
• Individual 2-band EQ control on every channel
• Assignable routing on 2-track inputs provides enhanced flexibility — Main Mix or Headphone Out
• Power, Peak, and Main Out meter LED indicators
• Main, Tape, and Headphone 1/4-inch outputs
• Rugged build provides solid, portable performance

Specs:

• Type: Analog Mixer with USB Interface
• Channels: 5
• Computer Connectivity: USB (2 x 2)
• A/D Resolution: 16-bit/48kHz
• Inputs - Mic Preamps: 1 x XLR
• Phantom Power: Yes
• Inputs - Line: 3 x 1/4" TRS, 1 x Dual RCA Stereo
• Outputs - Main: 2 x 1/4" (main)
• Outputs - Other: 1 x Dual RCA Stereo
• Headphones: 1 x 1/4" TRS
• USB: 1 x Type B
• Bluetooth: Yes
• EQ Bands: 2-band per channel
• Automation: No
• Power Source: 18V DC 500mA power supply
• Height: 2.6"
• Width: 6.3"
• Depth: 7.6"
• Weight: 2 lbs.
• Manufacturer Part Number: TRUEMIX500XUS
