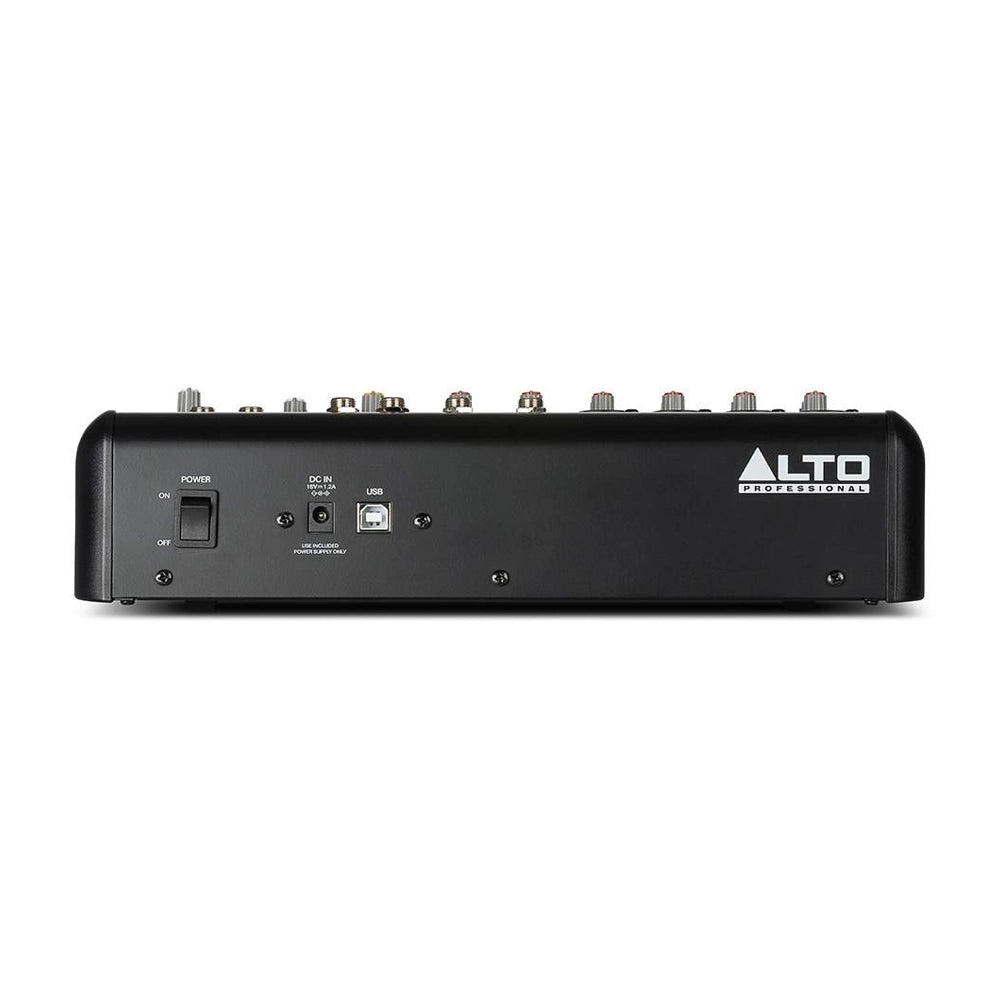

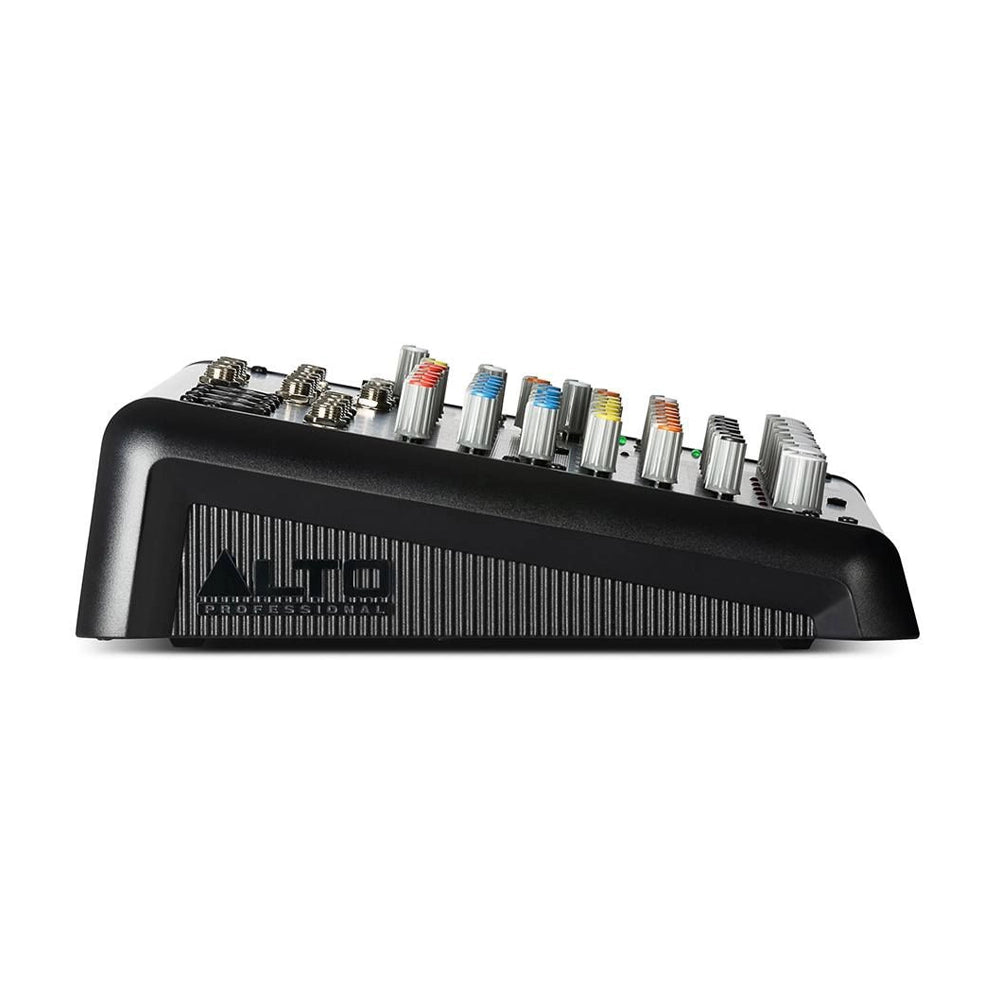

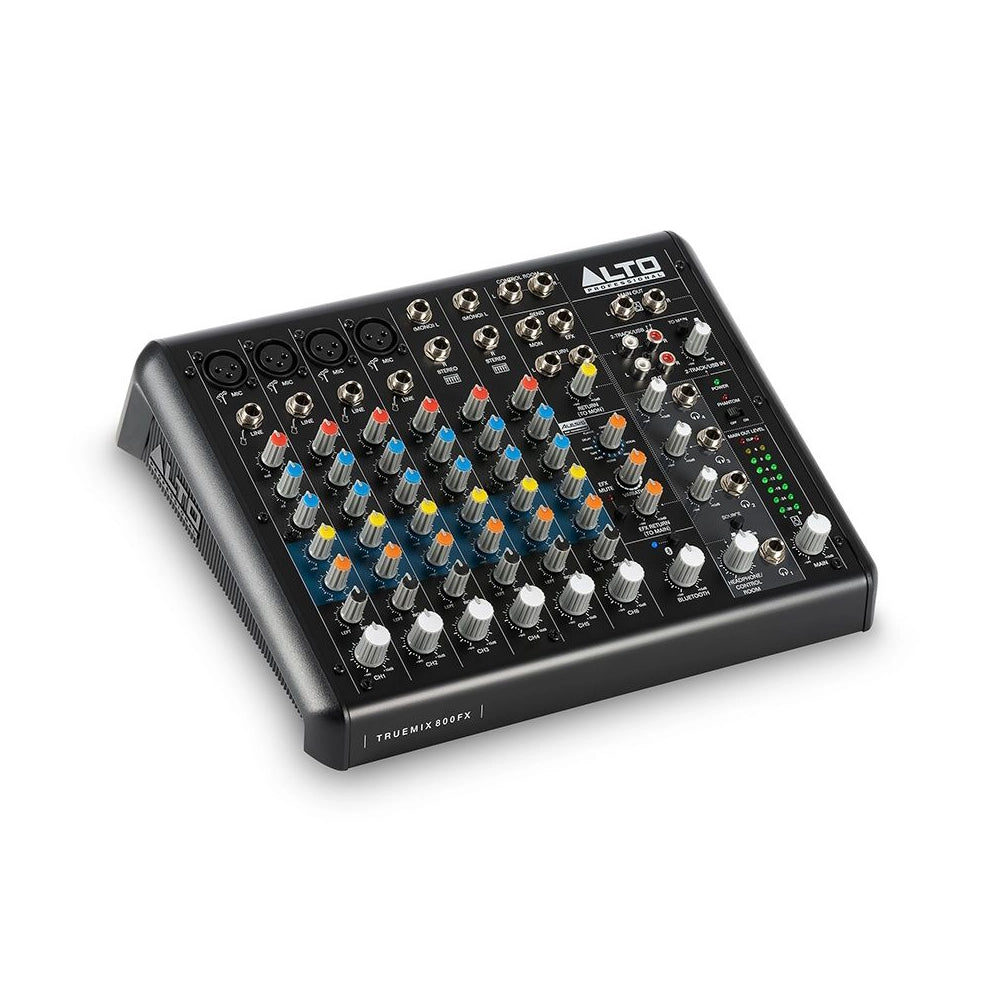

The Alto Professional TrueMix 800FX 8-channel analog mixer delivers simple and effective audio mixing to your workspace with built-in effects and audio shaping tools. Given its USB I/O interface, four microphone inputs with 48V phantom power, two stereo input channels, and 2-track inputs, you’ll enjoy versatile and simplistic mix control among a wealth of instruments, vocals, and more. Each of the eight channels is loaded with a 2-band EQ, gain, and panning control. Additionally, Main, Tape, and auxiliary outputs are available to facilitate your volume based on your specific gear. Found yourself at a darker venue? No worries: the Power, Peak, Phantom, Bluetooth, and Main Out meter LEDs will ensure you’ve still got a gauge on your audio. Likewise, the onboard eight-segment LED VU meter will ensure you’re given sight of your output in even the toughest working environments.

Inject quality Alesis FX directly into your mix

A dedicated effects bay within the Alto TrueMix 800FX grants expansive sound-shaping opportunities for direct use in your mix. 16 onboard effects including chorus, delay, reverb, and more enable the opportunity to supplement your audio without relying on external hardware effects. These features make the TrueMix 800FX a great addition to the arsenal of any streamer or content creator, as well as musicians and producers who are looking for an easy way to modulate their sound in one simple interface.

Features:

• High-performance 8-channel tabletop mixer — perfect for home studios and mobile projects
• Intuitive USB I/O provides simplistic connections and expansive application options
• 48V phantom power mic input channels
• Dual stereo input with balanced 1/4-inch TRS jacks
• Individual 2-band EQ control on every channel
• Assignable routing on 2-track inputs provides enhanced flexibility — Main Mix or Headphone Out
• Power, Peak, and Main Out meter LED indicators
• 16 built-in Alesis effects, including chorus, delay, reverb, flange, and more
• Onboard LED VU meter for consistent output monitoring
• Main, Tape, and Headphone 1/4-inch outputs
• Rugged build provides solid, portable performance

Specs:

• Type: Analog Mixer with USB Interface
• Channels: 8
• Computer Connectivity: USB
• A/D Resolution: 16-bit/48kHz
• Faders: 6 x Channel Level Knob, 1 x BT Level Knob, 1 x Headphone Level Knob, 1 x Master Level Knob
• Inputs - Mic Preamps: 4 x XLR
• Phantom Power: Yes
• Inputs - Line: 8 x 1/4" TRS
• Inputs - Other: 1 x Dual RCA Stereo
• Outputs - Main: 2 x 1/4" TRS (main), 2 x 1/4" TRS (control room)
• Outputs - Direct: 2 x 1/4" TRS (aux return)
• Outputs - Other: 1 x Dual RCA Stereo
• Aux Sends: 1 x 1/4" TRS (mon), 1 x 1/4" TRS (efx)
• Headphones: 4 x 1/4" TRS
• USB: 1 x Type B (2.0)
• Bluetooth: v5.0
• EQ Bands: 2-band
• Effects: Reverb, Delay, Chorus, Flanger
• OS Requirements - PC: Windows 10, 11
• Power Source: 18V DC Power Supply (included)
• Height: 3.1"
• Width: 12.0"
• Depth: 9.4"
• Weight: 4.5 lbs
