350-WATT 10-INCH 2-WAY POWERED LOUDSPEAKER

• 350 Watts peak, (175 Watts continuous Class D power)
• The 90 H x 60 V horn delivers greater coverage
• The full grille delivers style and provides protection for your investment.
• 10-inch (254 mm) LF driver, 1.5-inch (38.1 mm) voice coil
• 1-inch (25.4 mm) titanium diaphragm HF compression driver
• Lightweight, portable design for main or wedge monitor operation
• Standard speaker pole socket
• Bi-amplified design with precision active crossover and EQ
• Balanced XLR Mic/Line input, Link Output and Volume control
• Integrated analog limiter and overload protection circuitry
• Designed and tuned in the USA

TECH INFORMATION:

System Type: 2-way active ported loudspeaker

• Low-Frequency: 10.0” (254 mm) driver, 1.4” (35.5 mm) voice coil
• High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil

Amplifier: 350 watts (peak), 175 watts (continuous), Class D power
Horn Coverage: 90º horizontal x 60º vertical (nominal)
Frequency Response: 75 Hz – 20 kHz (-3 dB)
Crossover Frequency: 2.5 kHz
Max SPL: 117 dB @ 1 m

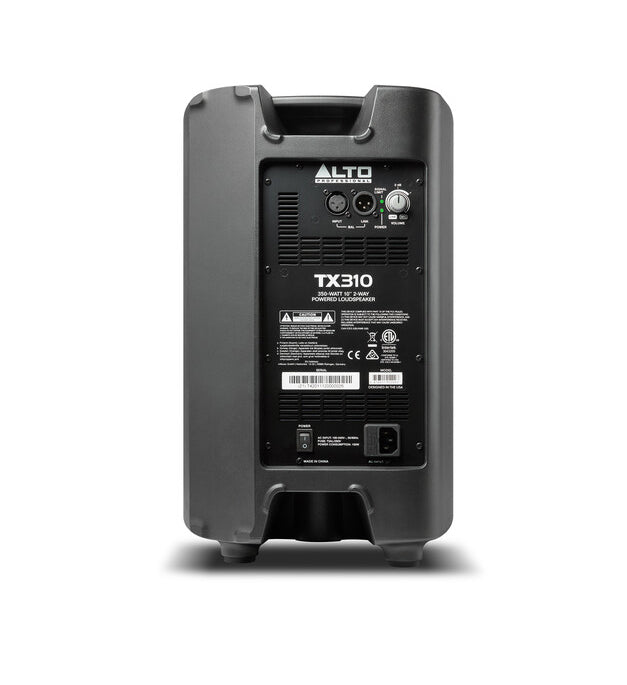

Connectors:

• (1) XLR balanced input (Line/Mic)
• (1) XLR output (Link)
• (1) IEC power cable input

Controls: Power switch, volume control knob
Indicators: (2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
Power:

• Connection: IEC
• Voltage: 100–240 V~; 50/60 Hz
• Fuse: T2AL/250V
• Consumption: 150 W

Protection: Thermal, overload analog limiter/compressor
Enclosure: Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
Mounting/Installation: Standard 36 mm pole socket, wedge monitor
Dimensions (height x width x depth):

• 18.2” x 11.2” x 11.0”
• 462 x 284 x 279 mm

Weight:

• 13.4 lb
• 6.1 kg
